Raspberry Pi is a versatile and affordable computer that opens up a world of possibilities for DIY enthusiasts, hobbyists, and tech enthusiasts alike. It is an excellent way to learn about the Linux Operating System, robotics, network computing, and more. It’s a versatile platform that enables you to explore limitless possibilities, from building smart home automation systems to creating retro gaming consoles. With its compact size, affordability, and vibrant community, the Raspberry Pi is perfect for unleashing your creativity and learning new skills. In this step-by-step tutorial, I’ll walk you through the entire process of setting one up, from assembling the necessary components to getting your Raspberry Pi up and running smoothly (note that for this tutorial I will be using macOS). Whether you’re a complete beginner or an experienced user looking for a refresher, this guide will provide you with all the information you need to set up your Raspberry Pi and embark on exciting projects. So, let’s dive in and explore the journey of bringing this compact powerhouse to life!
Parts List
First things first, you’ll need the necessary equipment. Below is a parts list that has everything you need to get started.
Thanks for reading Duff’s Substack! Subscribe for free to receive new posts and support my work.Subscribe
To start, I want to recommend the official Raspberry Pi starter kit from www.raspberrypi.com. It has everything we need to get up and running except for a computer monitor. If you purchase this kit, you can skip everything below, and you just need a computer monitor that works with a regular HDMI port.
If for any reason the above kit is not available, or if you are looking for a parts refresher, continue with this section.

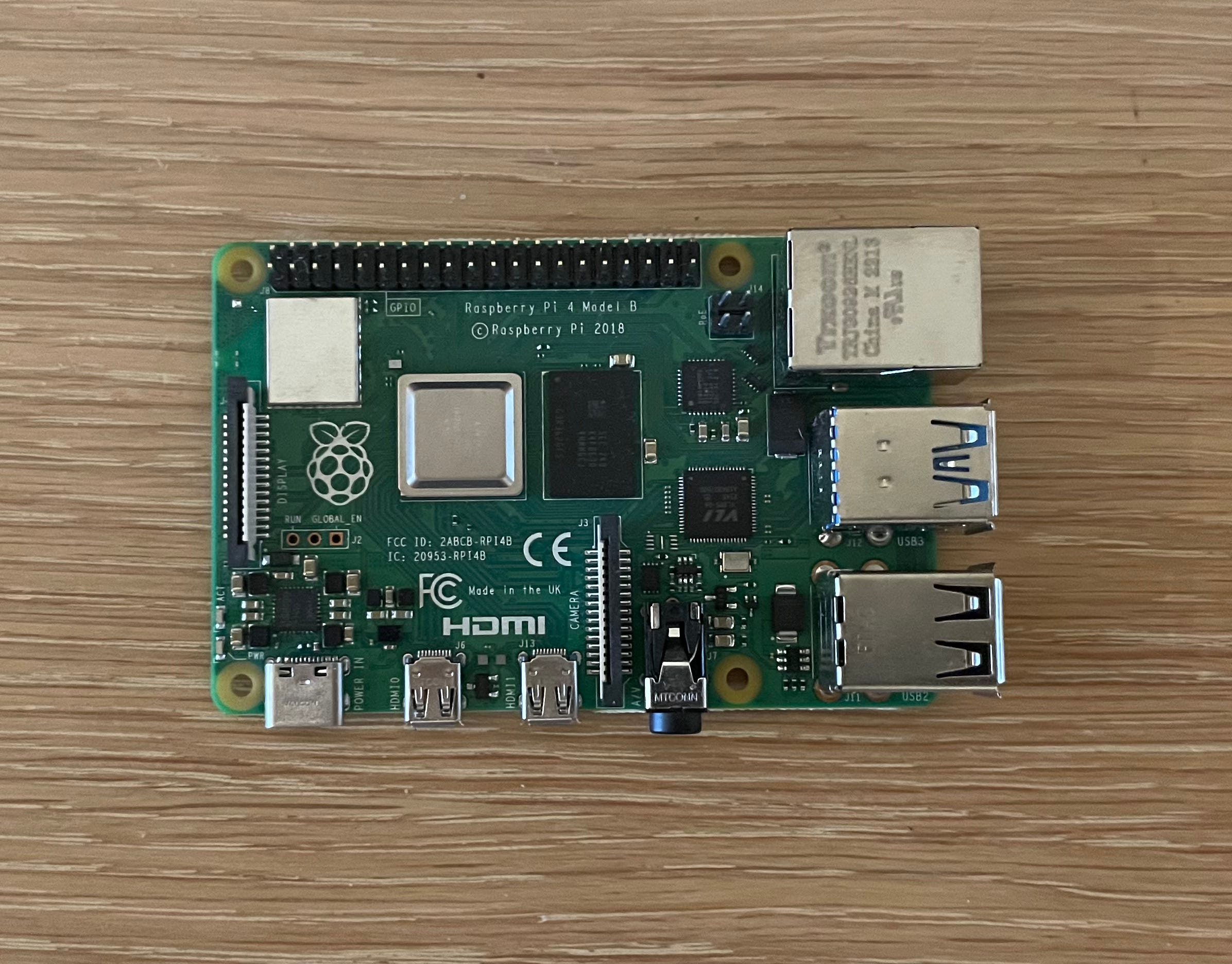

- Raspberry Pi
- Of course, the first thing we’ll need is a Raspberry Pi. There is a shortage of these happening currently because of the demand for these computers, but I was able to order one myself off Amazon.Raspberry Pi 4 Model B, 2019 Quad Core 64 Bit, WIFI Bluetooth (2GB)
- Keyboard and Mouse
- If you have a USB keyboard and mouse, you can easily use whatever you have and skip this step.
- Bluetooth keyboards and mice will work, given they have a USB connector, but you may run into issues connecting two of these devices, so I would recommend either a single Bluetooth keyboard/touchpad device, or the two USB wired devices

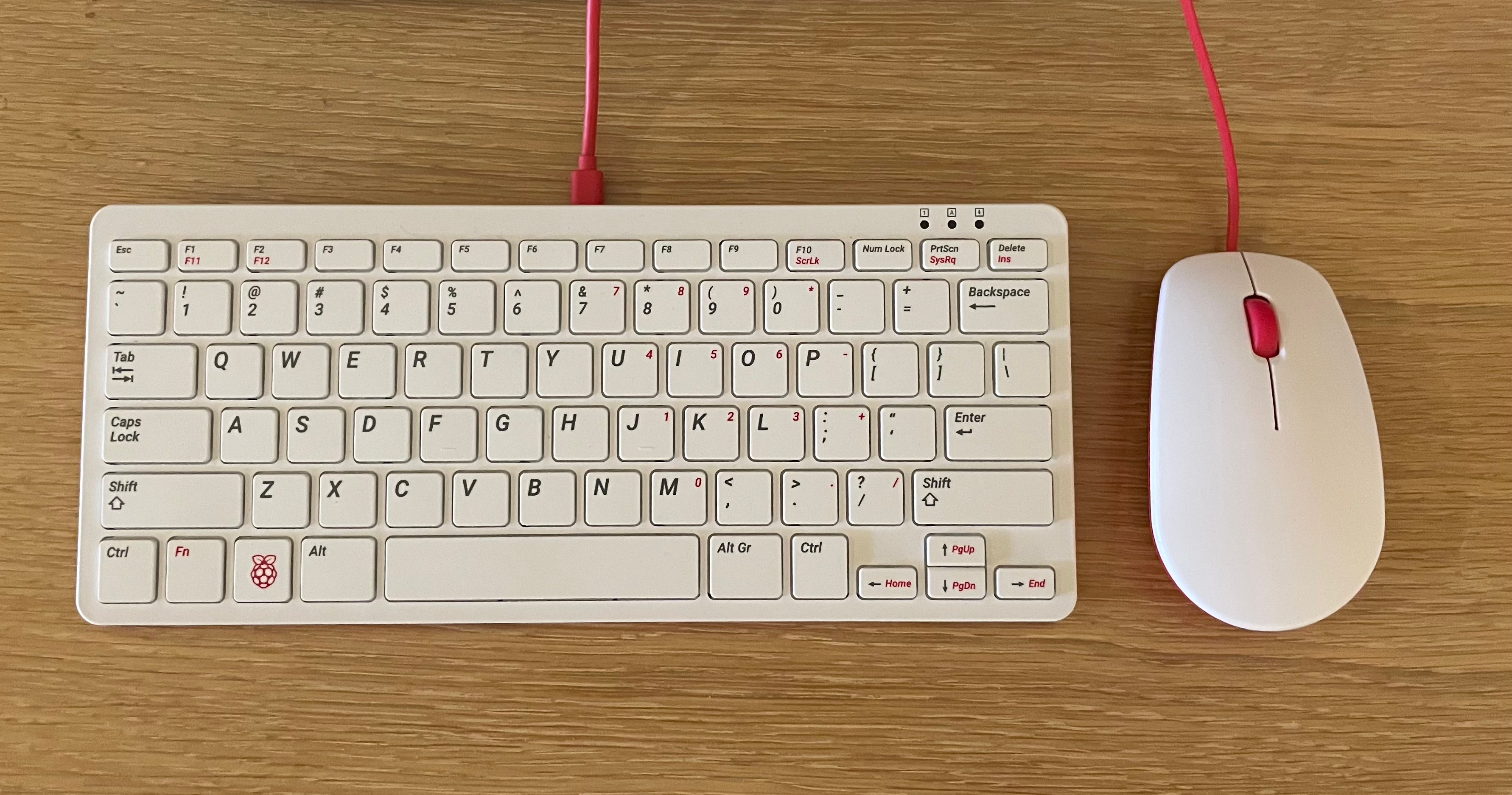

- Below is the official Raspberry Pi keyboard & mouse combo that I am using for this tutorialOfficial Raspberry Pi Keyboard & Hub and Mouse Combo with Logo Sticker (White/Red)

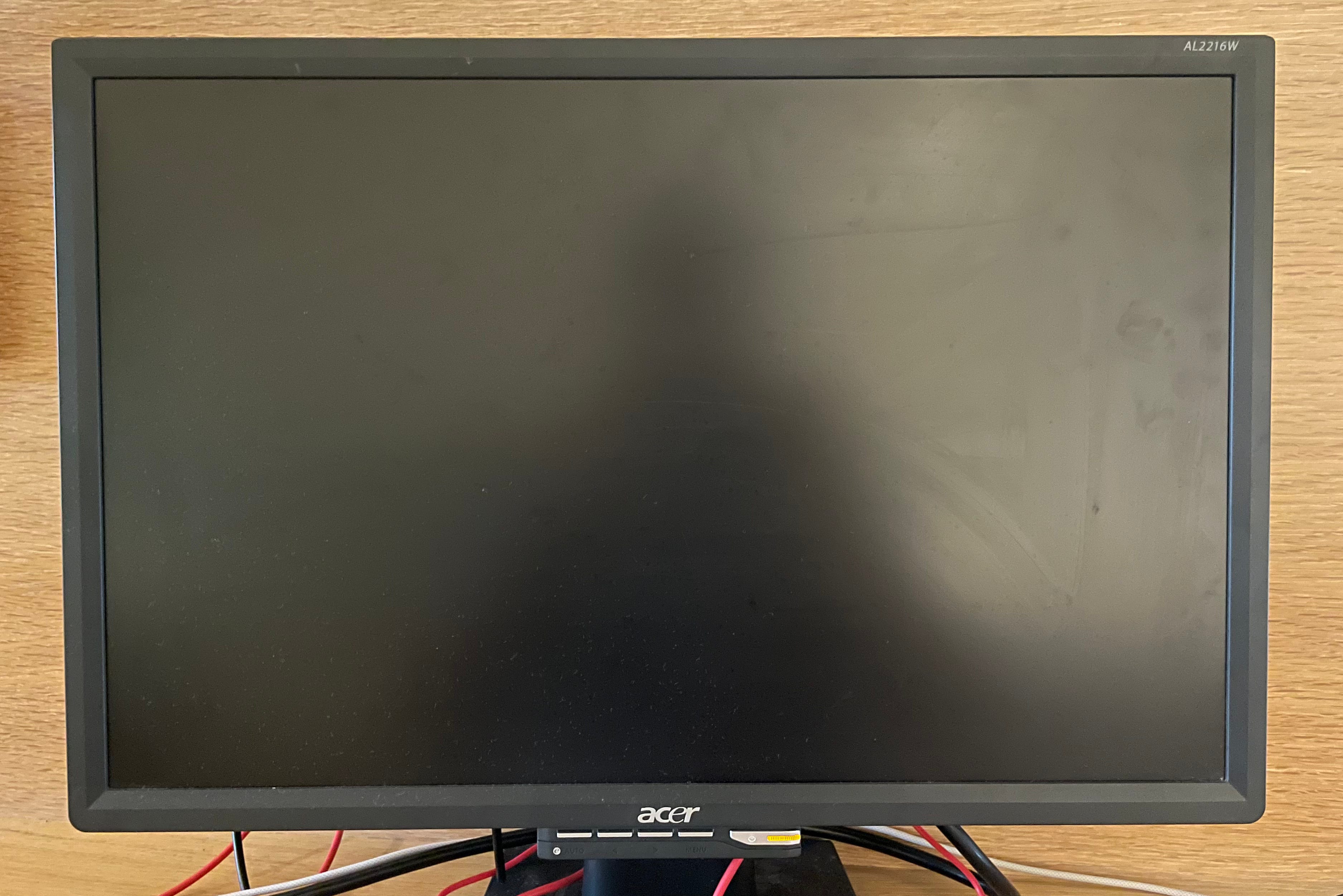

- Computer Monitor
- MicroSD Card

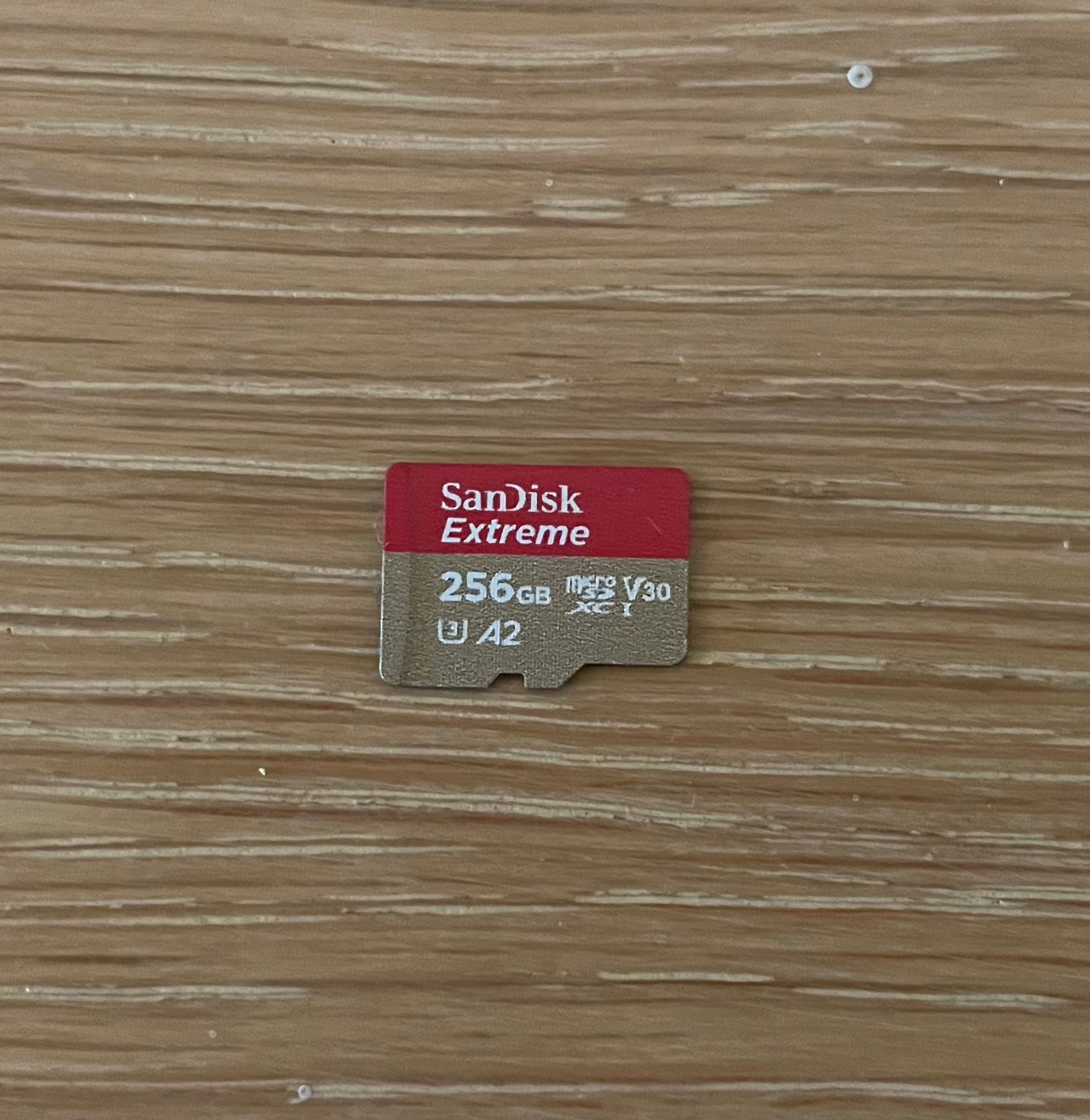

- We will load the Linux Operating System onto the MicroSD card, which will serve as the primary storage for our Raspberry Pi. This card not only houses the operating system but also acts as the storage medium for all our data and applications. While the Raspberry Pi can function with MicroSD cards as small as 8GB, it’s often advisable to opt for a larger capacity to accommodate your storage requirements. Consider selecting a MicroSD card with a capacity of 16GB or higher to ensure you have ample space for the operating system, applications, and any additional data you plan to store on your Raspberry Pi. I went with a 256GB MicroSD.SanDisk 256GB Ultra microSDXC UHS-I Memory Card – 120MB/s, C10, U1, Full HD, A1, Micro SD Card SDSQUA4-256G-GN6MN

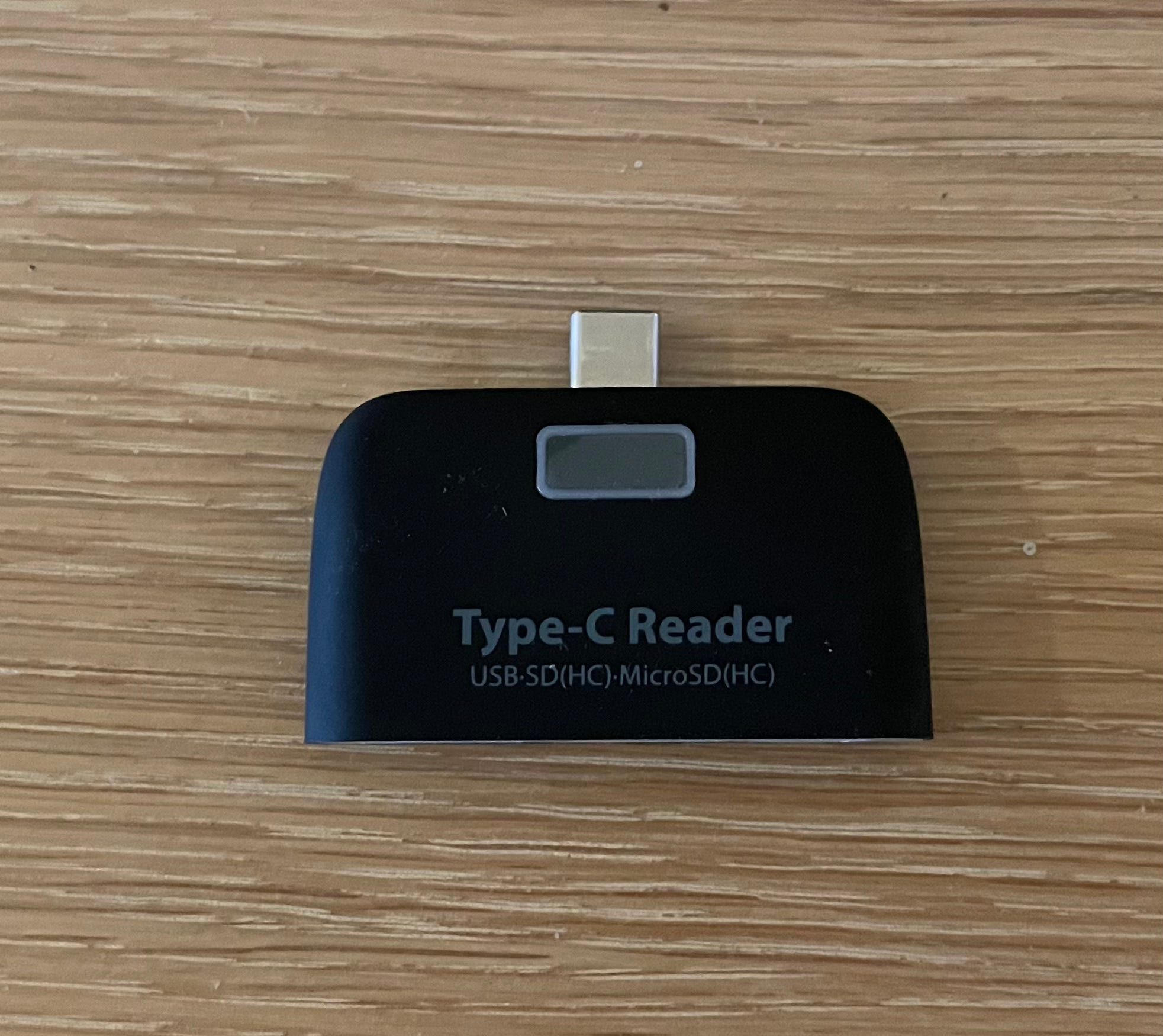

- MicroSD Reader
- For macOS, depending on the computer model you have, you may need to purchase a Reader to connect your MicroSD to you’re Mac. My Mac model only has USB-C ports, so I needed to purchase a Type-C Reader to connect to my machine. This is necessary to format and upload the Linux OS to the MicroSD card. You may require a regular USB to MicroSD reader, or you might not require anything at all, depending on the age and model of your machine. I have liked a Type-C Reader below.3 in 1 USB C to SD Card Reader Micro sd Card Reader Type c to sd Card Reader Adapter USB Camera Connection Kit USB C to USB OTG Compatible with USB-C Devices
- Power Source

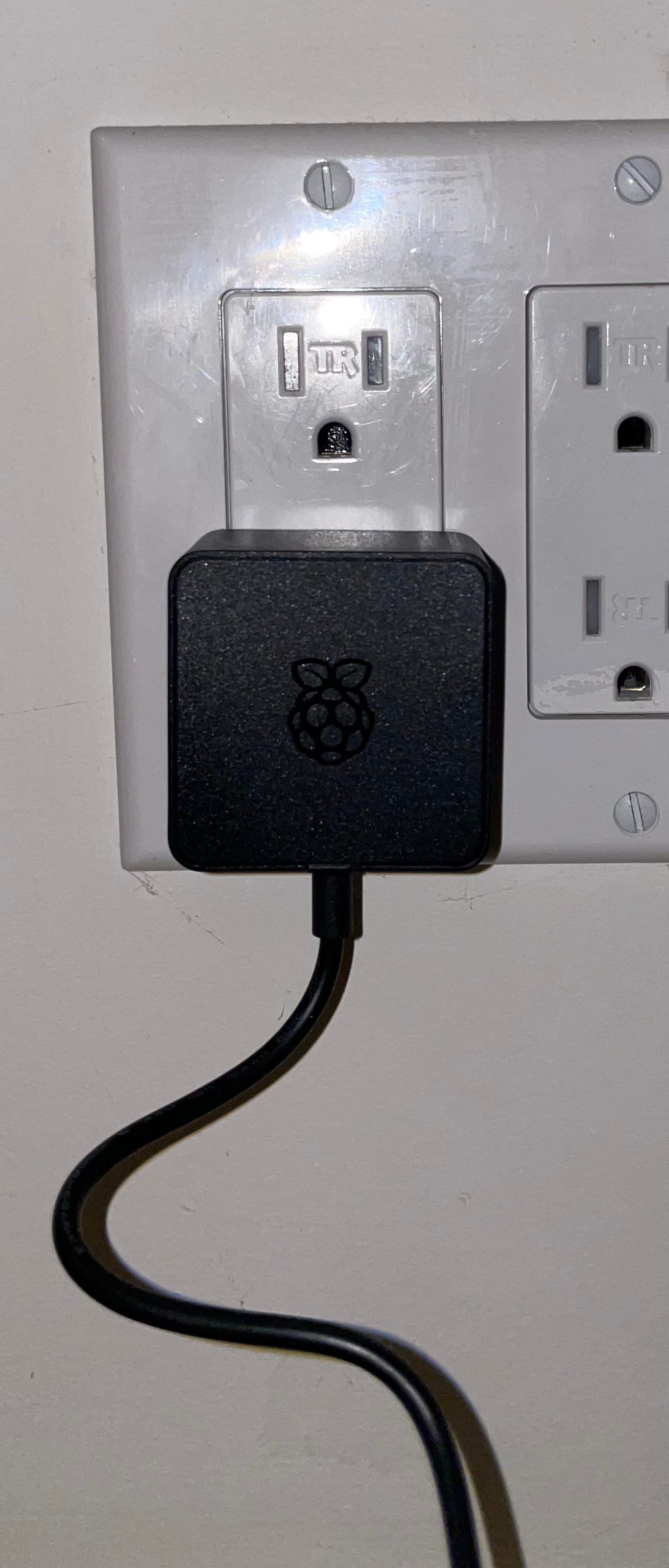

- The Raspberry Pi 4 runs off a USB-C power source, and I highly recommend using the official Raspberry Pi power supply.Raspberry Pi 4 Model B Official PSU, USB-C, 5.1V, 3A, US Plug, Black SC0218 Pi Accessory
And that’s it for the parts list!
Raspberry Pi Setup
1 . Preparing Your MicroSD Card with Raspberry Pi Imager
Setting up your Raspberry Pi starts with a crucial step: formatting your new microSD card. You might be wondering, “Why do we need to go through this process? Can’t we just use the SD card as is?” Let’s dive into the details and understand why it’s necessary.
Formatting a microSD card involves wiping out any existing data and configuring it for optimal use with your Raspberry Pi. Essentially, it establishes a file system that the Raspberry Pi can understand and utilize effectively. Think of it as giving the card a fresh start, tailored specifically to meet your Raspberry Pi’s needs.
But why can’t we use the microSD card right out of the packaging? Well, microSD cards typically come preformatted with a file system that may not be compatible with the Raspberry Pi. By formatting it, we ensure that the card is correctly set up and optimized for the Raspberry Pi’s operating system.
A convenient tool that simplifies the formatting and imaging process is the Raspberry Pi Imager. This software streamlines the setup by combining the formatting and OS installation into one seamless procedure.
With the Raspberry Pi Imager, you can effortlessly format your microSD card and write the operating system image onto it. The tool automatically handles the formatting aspect, ensuring the correct file system is in place. It saves you the hassle of manually formatting the card separately.
Imaging refers to the process of writing the complete operating system image onto the microSD card. The Raspberry Pi Imager takes care of this step as well, ensuring that the card is loaded with the necessary software for your Raspberry Pi.
By utilizing the Raspberry Pi Imager, you simplify the preparation of your microSD card, making the overall setup smoother and more efficient. It’s a user-friendly solution that eliminates the need for multiple tools or manual formatting, allowing you to focus on exploring the exciting possibilities with your Raspberry Pi.
So, let’s get started with the Raspberry Pi Imager and effortlessly format and image your microSD card, paving the way for an amazing Raspberry Pi experience!
- Connect your MicroSD to your macOS
- Download the Raspberry Pi Imaging Software here

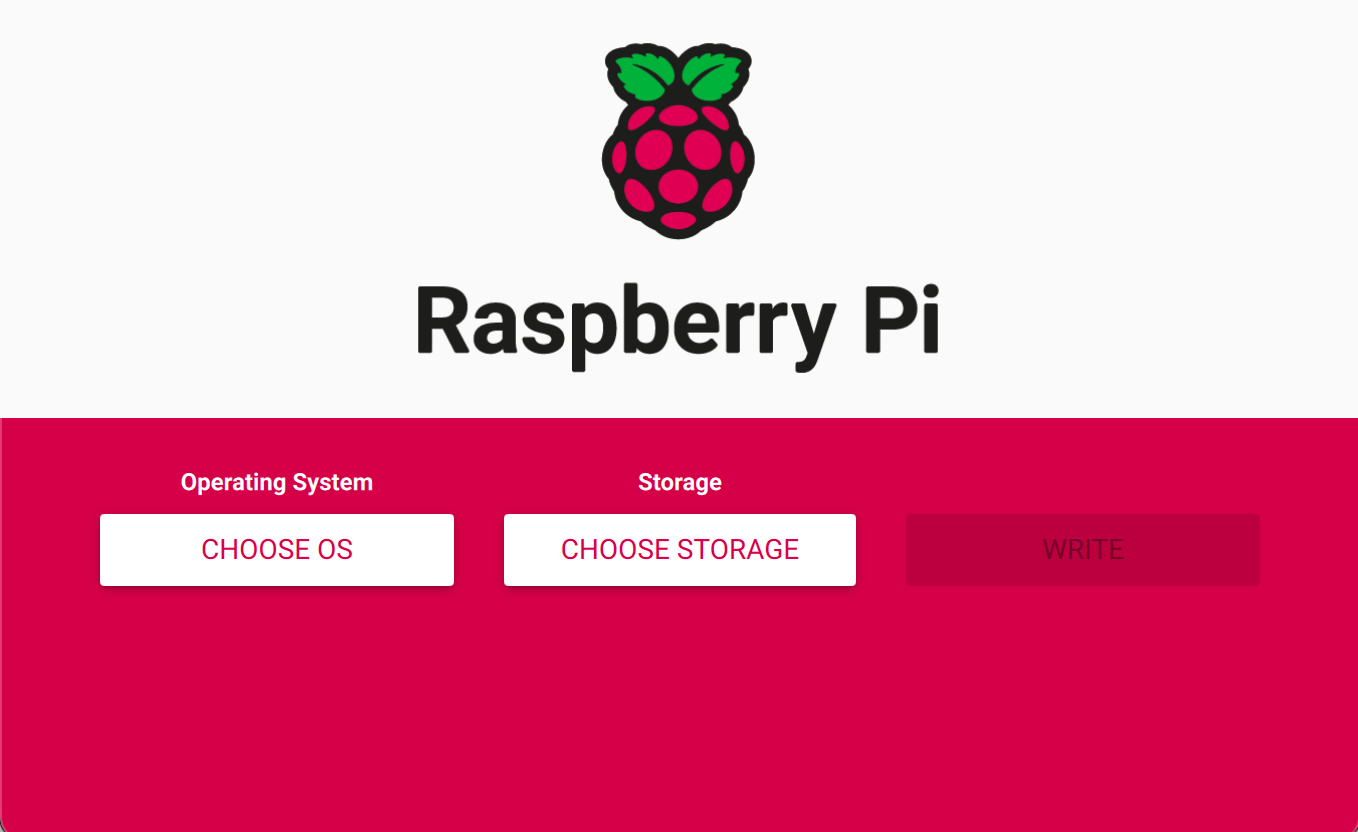

- Open the Imager, and you should have a screen similar to below:

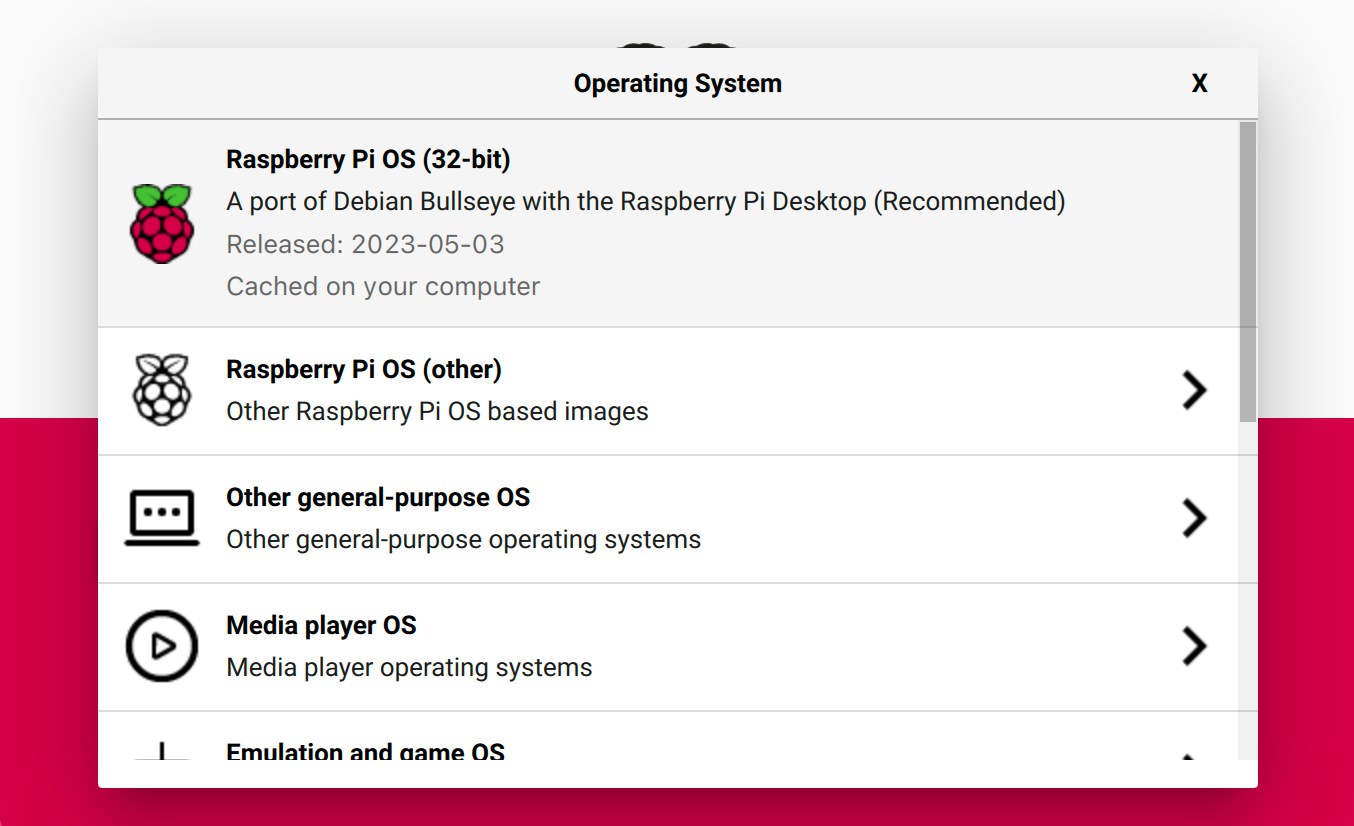

- Choose the Raspberry Pi OS (32-bit)
- Then click “Choose Storage” and your MicroSD card
- Finally, click write
Make sure your computer is connected to a steady power supply, and that you give the program ample time to write the OS and format the card.
2 . Setting Up the Hardware

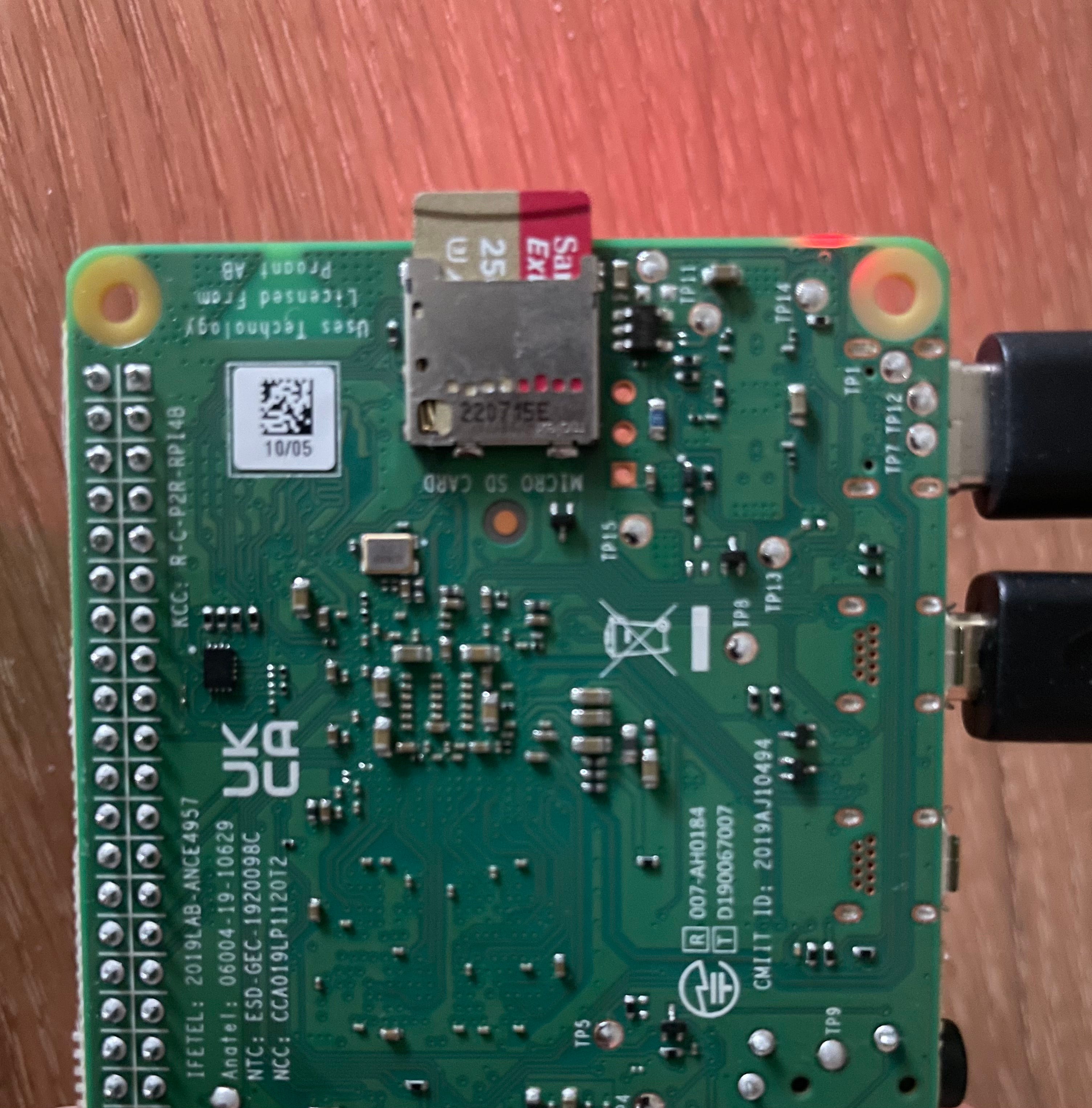

Now we can move onto setting up all of the Raspberry Pi hardware from our parts list. Remove the MicroSD card when the imaging sequence is finished, and insert it into the Raspberry Pi as shown below.

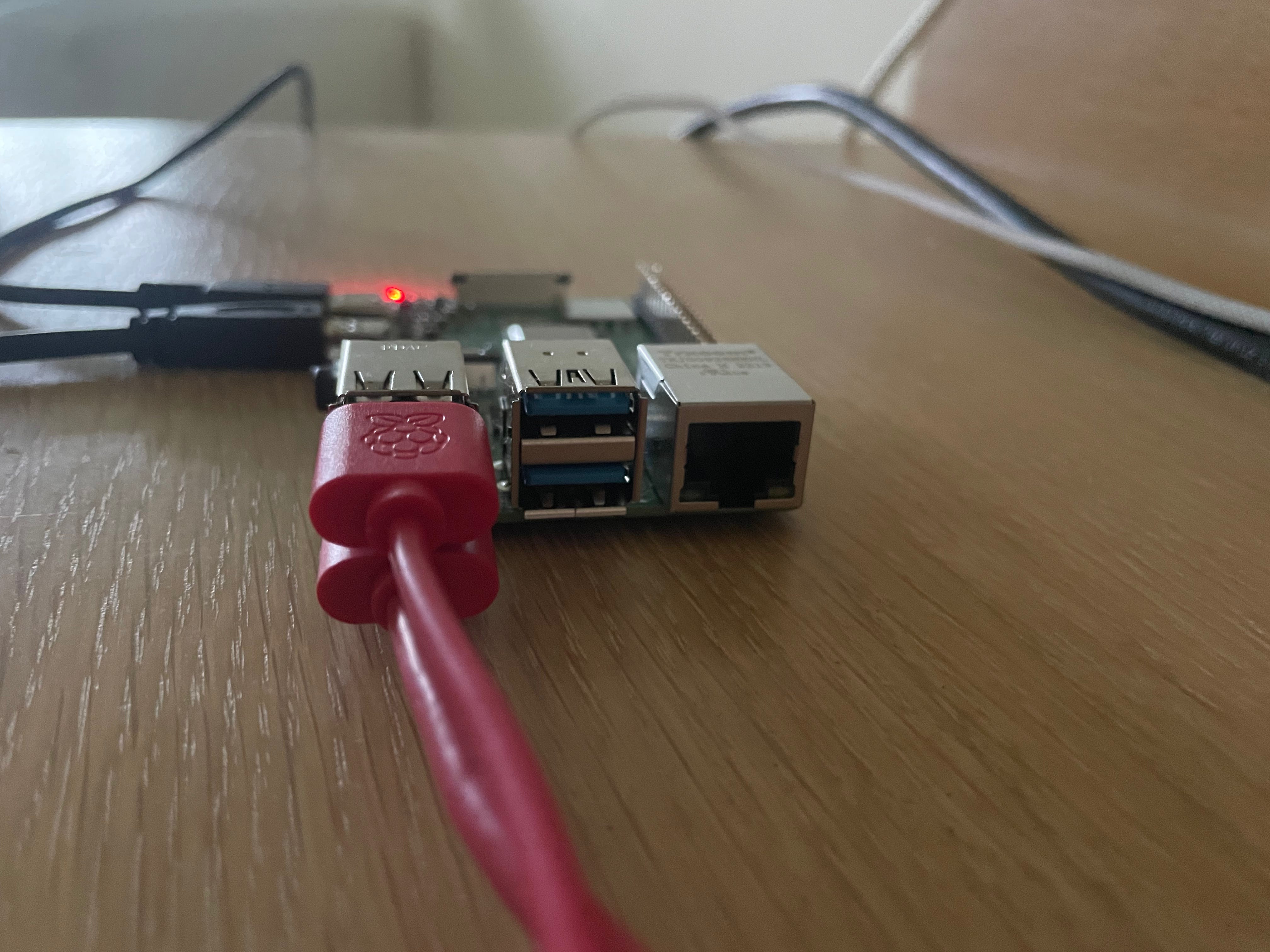

The Raspberry Pi 4 features two sets of USB ports, each serving a distinct purpose. The blue ports, often referred to as USB 3.0 ports, provide faster data transfer speeds compared to the black USB 2.0 ports. These USB 3.0 ports are ideal for connecting devices that demand high-speed data transfer, such as external hard drives or USB sticks containing large files.
When it comes to connecting your mouse and keyboard, it’s generally recommended to utilize the USB 2.0 ports, denoted by the black color. This choice ensures compatibility and reliable performance for input devices like the mouse and keyboard. While you could technically connect them to the USB 3.0 ports, it’s more suitable to reserve those faster ports for devices that require speedy data transfers.

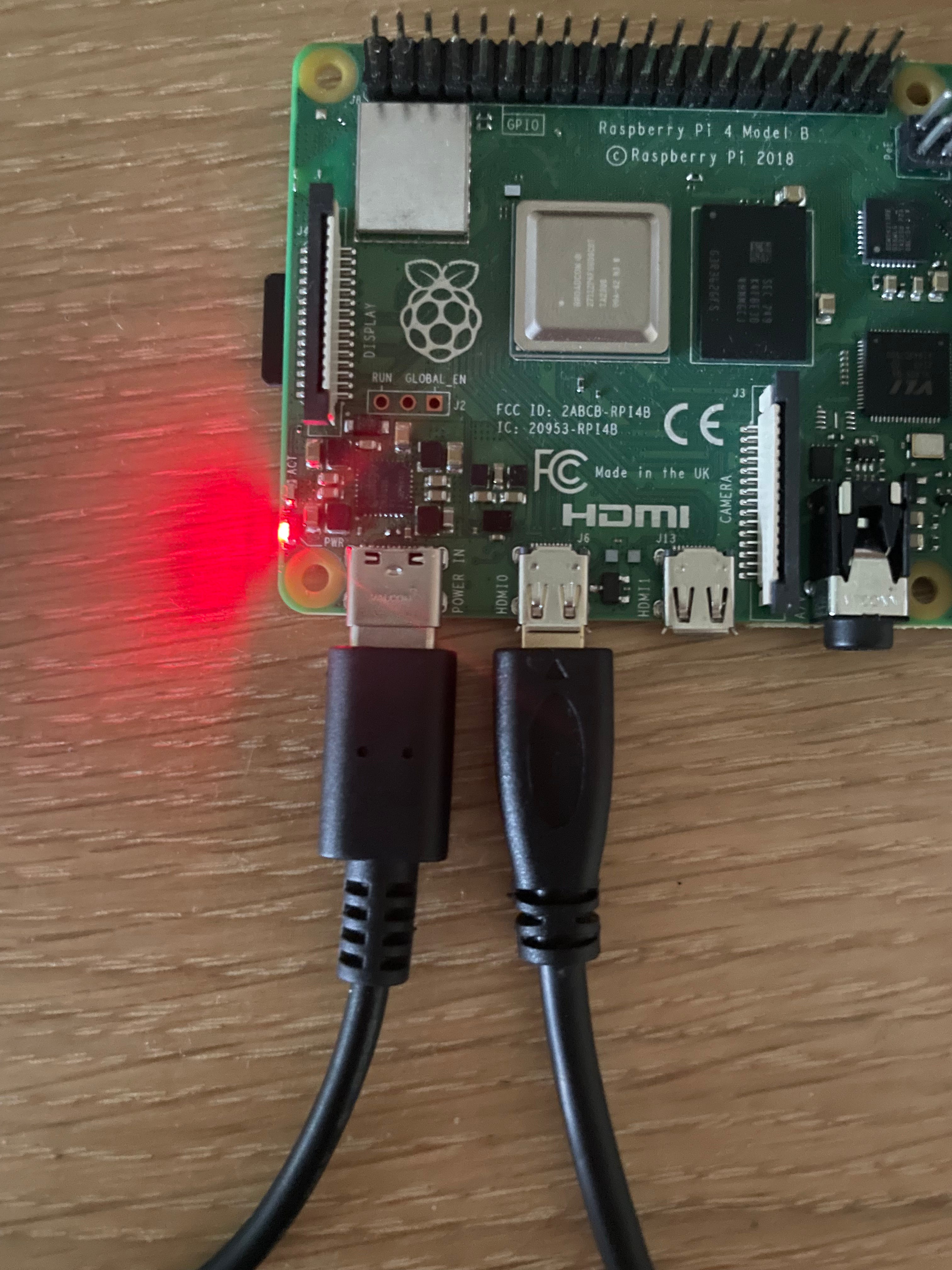

After connecting your keyboard and mouse, connect your monitor to the microHDMI port, and lastly, connect your power source.

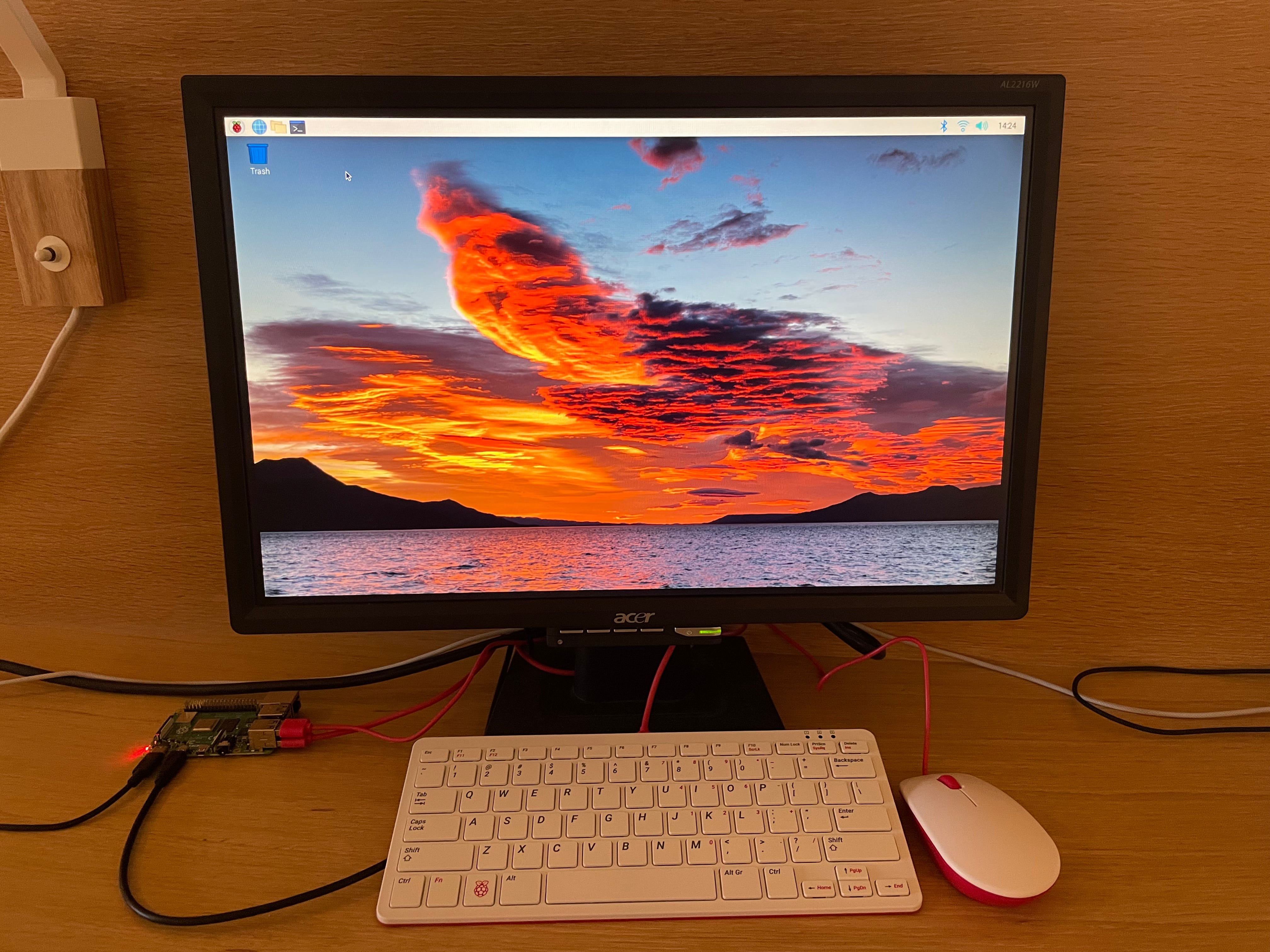

Once you power up your Raspberry Pi, the monitor will come to life, initiating the Linux boot procedure. You’ll witness the progress as the system prepares itself. After a short while, you’ll be greeted by a user-friendly desktop environment that guides you through the digital setup of your Pi. This step will ensure that your Raspberry Pi is configured according to your preferences, making it ready for your exploration and tinkering. Enjoy the process as you embark on this technical journey with your Raspberry Pi!
Conclusion
The Raspberry Pi opens up a world of exciting possibilities for tech enthusiasts and hobbyists alike. With its compact size and powerful capabilities, this little wonder can fuel your curiosity and inspire countless projects. Its versatility extends to robotics, IoT applications, and much more. The vibrant Raspberry Pi community is always buzzing with innovative projects and ideas, ready to support and inspire you on your journey.
Now that you have set up your Raspberry Pi and experienced the thrill of its boot-up process, it’s time to dive deeper. Get your creative gears turning by exploring project ideas that align with your interests. Whether it’s coding a weather station, developing a home security system, or building a media center, the possibilities are truly limitless.
To kickstart your coding journey, the Geany IDE (Integrated Development Environment) provides a friendly platform for writing and running your code. From Python to C++, Geany offers a comfortable space for you to unleash your programming skills and bring your concepts to fruition.
Happy tinkering!
